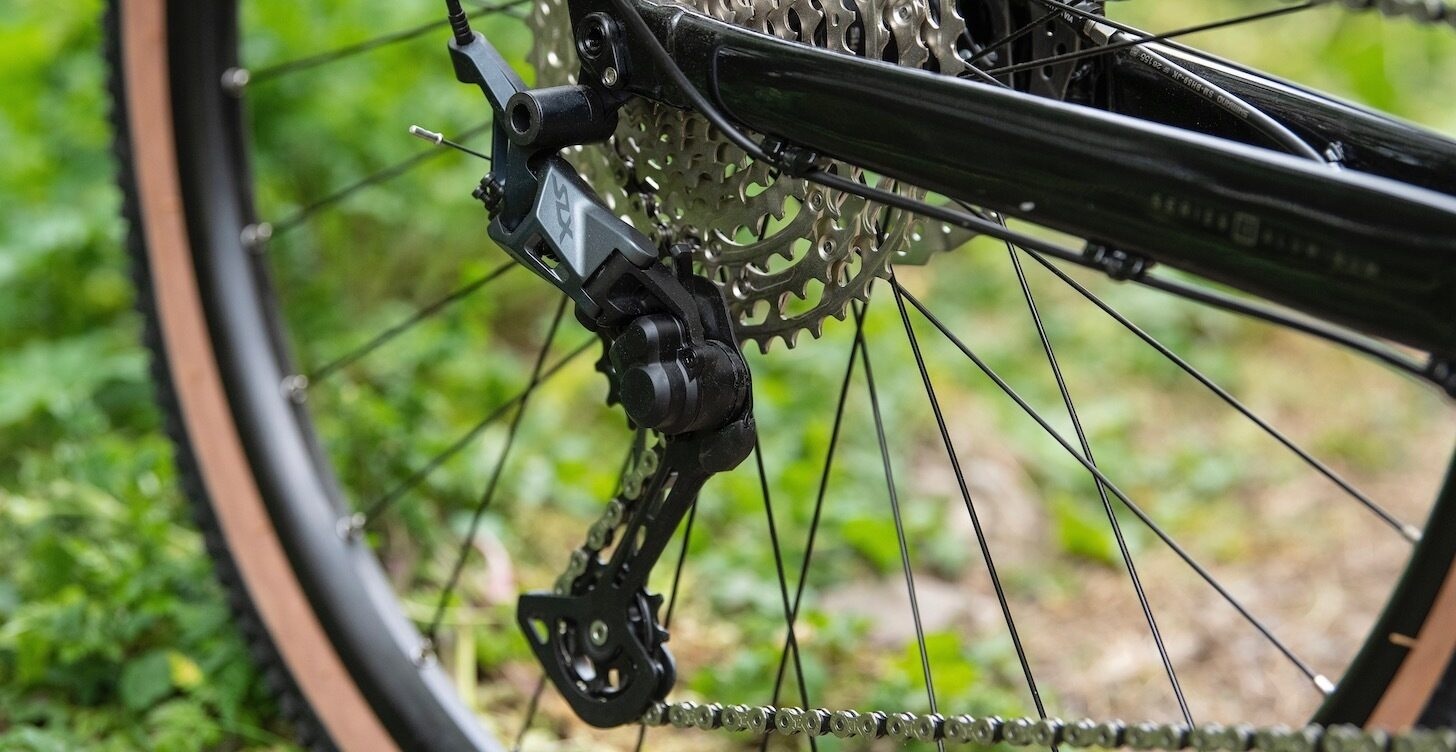

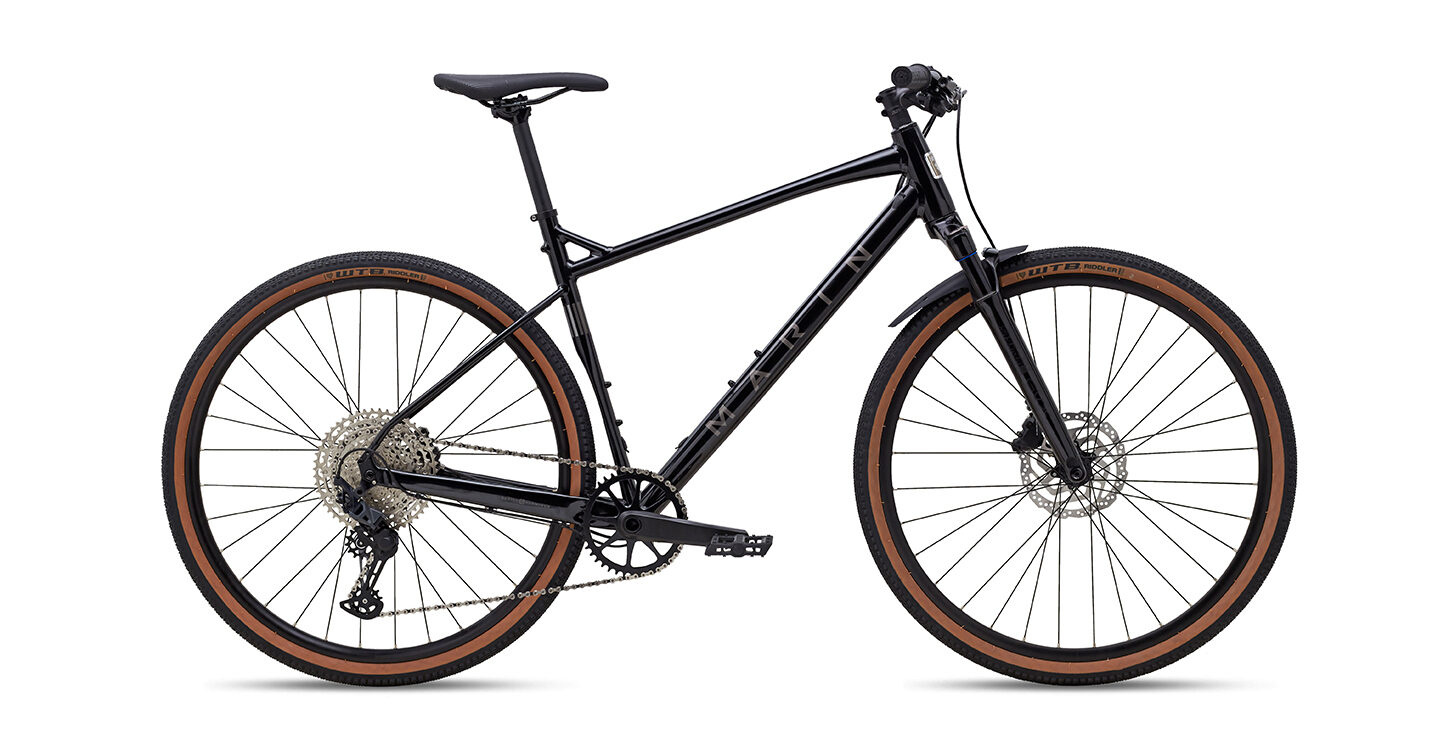

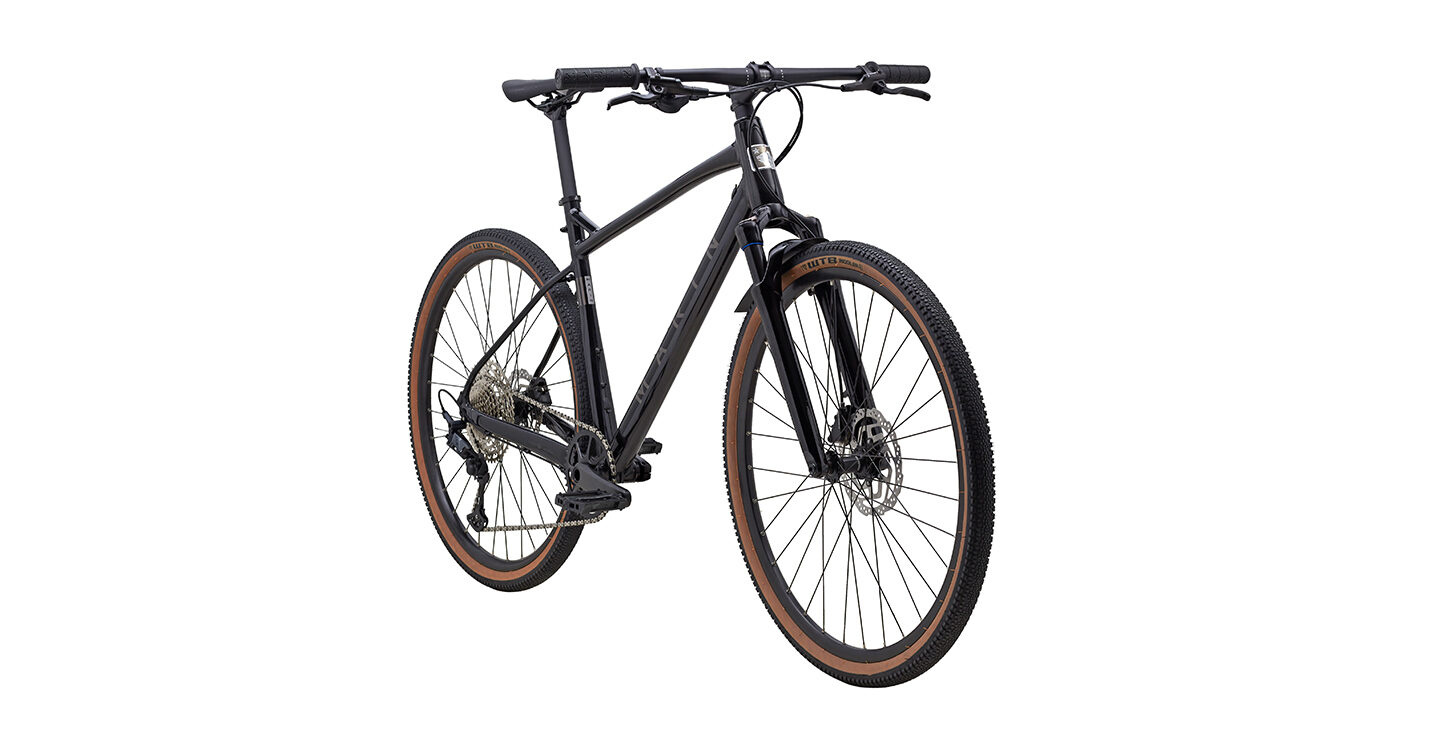

Is it a gravel bike? Is it a mountain bike? We’ve got no idea - we just know that it’s a whole mountain of fun. The Marin DSX FS breaks the gravel bike mold even further by adding a 60mm SR/Suntour front suspension fork for hard-charging, off-road adventures. There’s also a 12-speed 1X Shimano SLX drivetrain, Vee Tire Co tires, Shimano hydraulic brakes and plenty of reliable Marin components.
SERIES 3 FRAMES

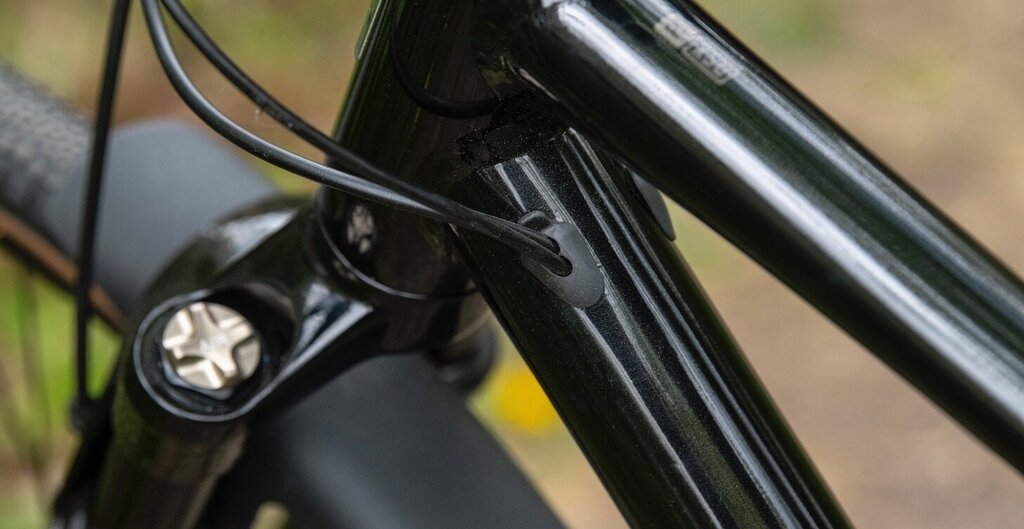

The DSX FS, 2, and 1 feature a butted and formed Series 3 6061 aluminum frame with internal routing, 142x12mm thru-axles, flat mount disc brakes, and rack and fender eyelets.

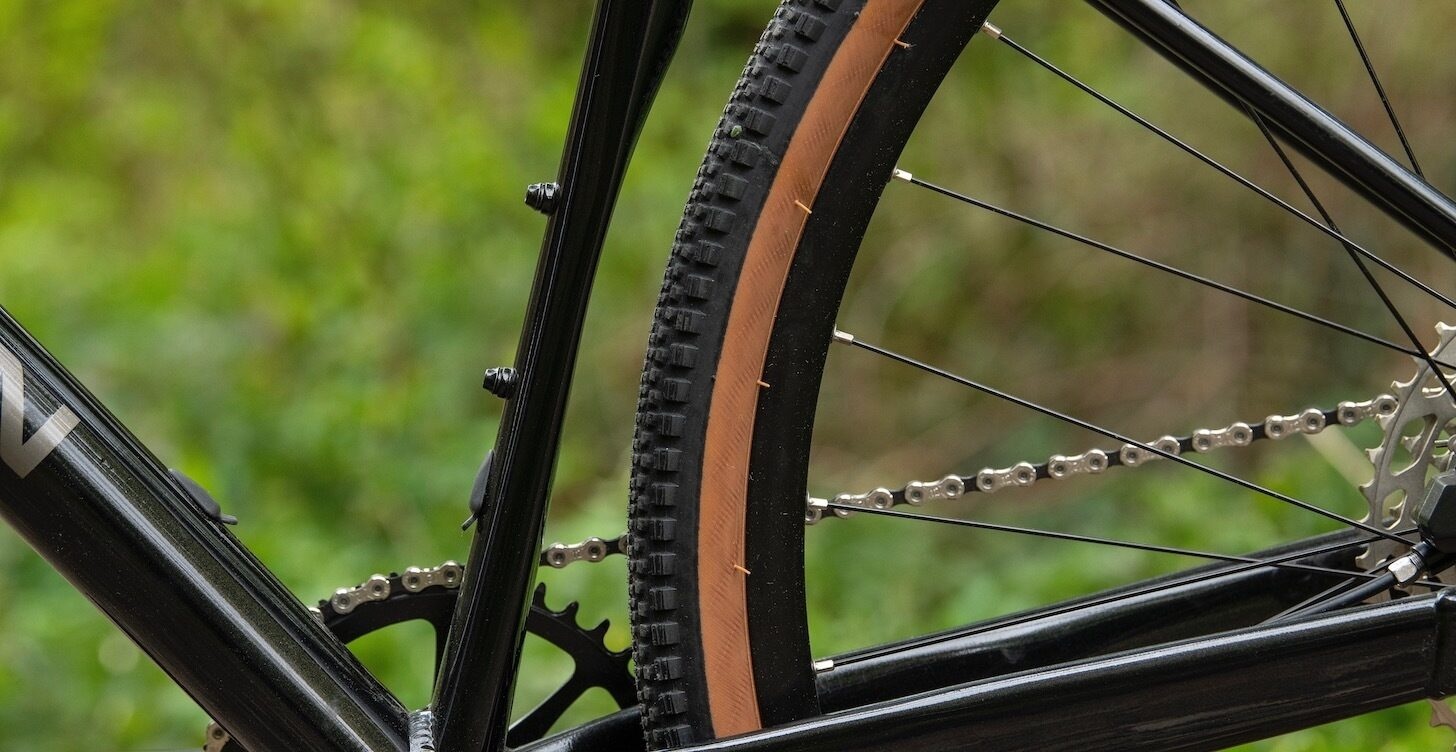

TIRE CLEARANCE
The DSX comes stock with 700x45mm tires, with room for 700x50mm rubber.

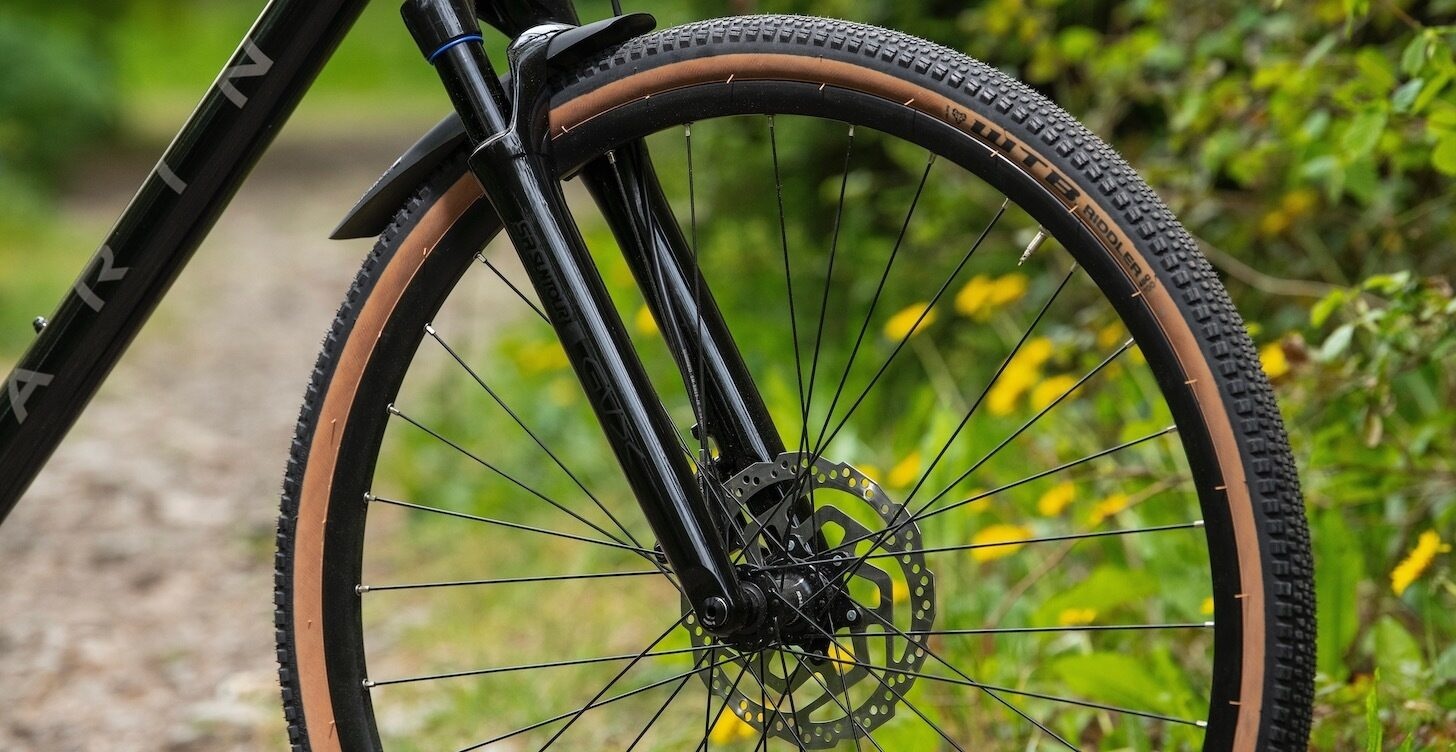

DISC BRAKES
The DSX features the latest flat mount disc brake standard for smooth, controlled stopping in all conditions with minimal maintenance.

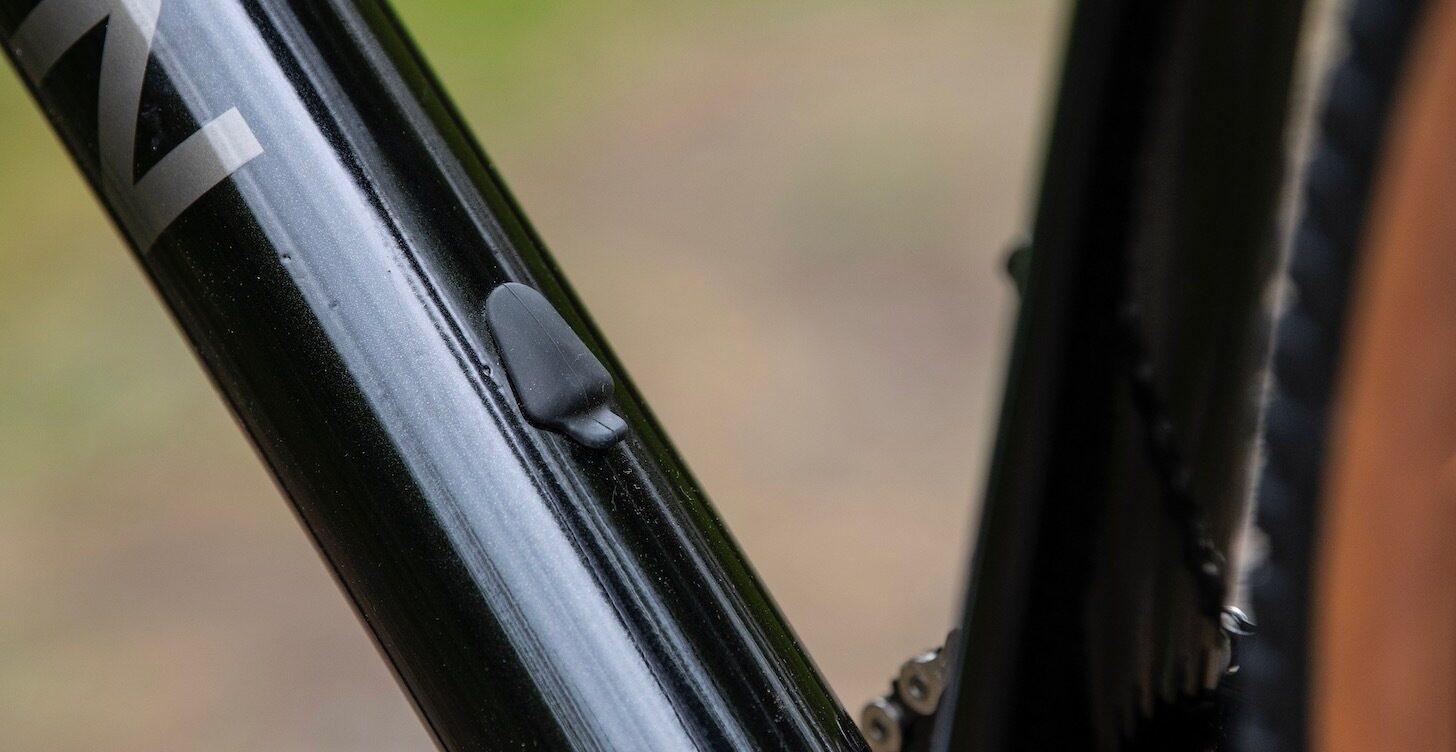

DROPPER POST ROUTING
Dropper posts are quickly becoming standard fare for gravel racers and riders that spend significant time on rough surfaces, and the DSX features internal dropper post routing for easy upgrades.
Specs:
Frame: Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Fork: SR/Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts
Rims: Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
Hub, Rear: Forged Aluminum, 142x12mm, Disc Specific, 32H
Hub, Front: Forged Aluminum, 100x12mm, Disc, 32H
Spoke, Nipples: 14g Black Stainless Steel
Tires: Vee Tire Co. Rocket Man, 700Cx44mm
Derailleur, Rear: Shimano SLX, RD7100, 12-Speed
Shift Lever: Shimano Deore, SLM6100, 12-Speed
Crankset: Forged Aluminum, 42T Steel Narrow Wide Chainring
Bottom Bracket: Sealed Outboard Bearing
Chain: KMC X12
Cassette: SunRace, 12-Speed, 11-51T
Brake, Front: Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
Brake, Rear: Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
Brake Levers: Tektro Hydraulic
Handlebar: Marin Mini Riser
Stem: Marin 3D Forged Alloy
Grips: Marin MTB
Headset: FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Seatpost: Marin Alloy
Saddle: Marin DSX
Pedals: Nylon Platform
Extras: Bolt-On Thru-Axles F and R
Specifications, pricing, and availability are subject to change without notice.
