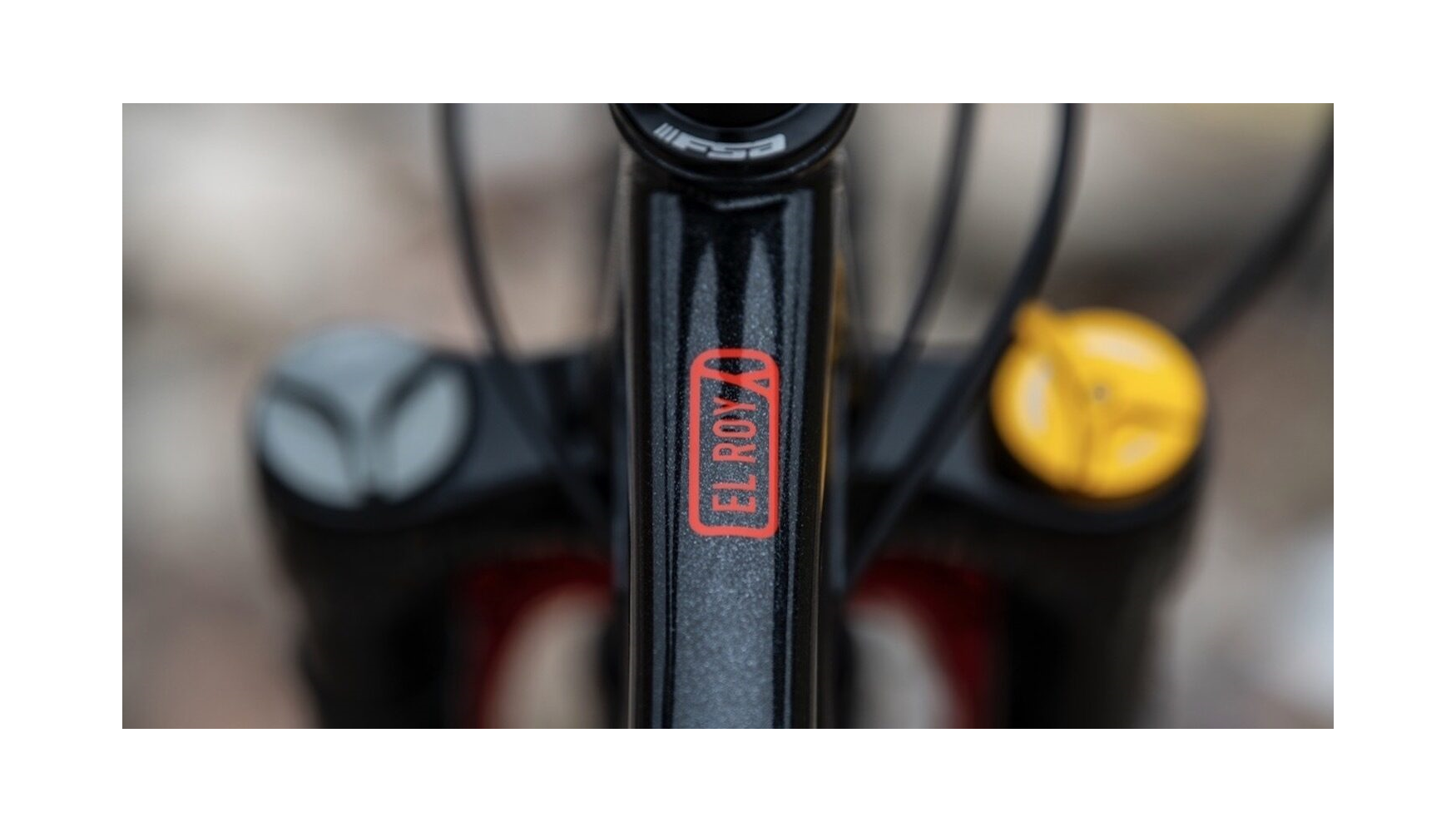

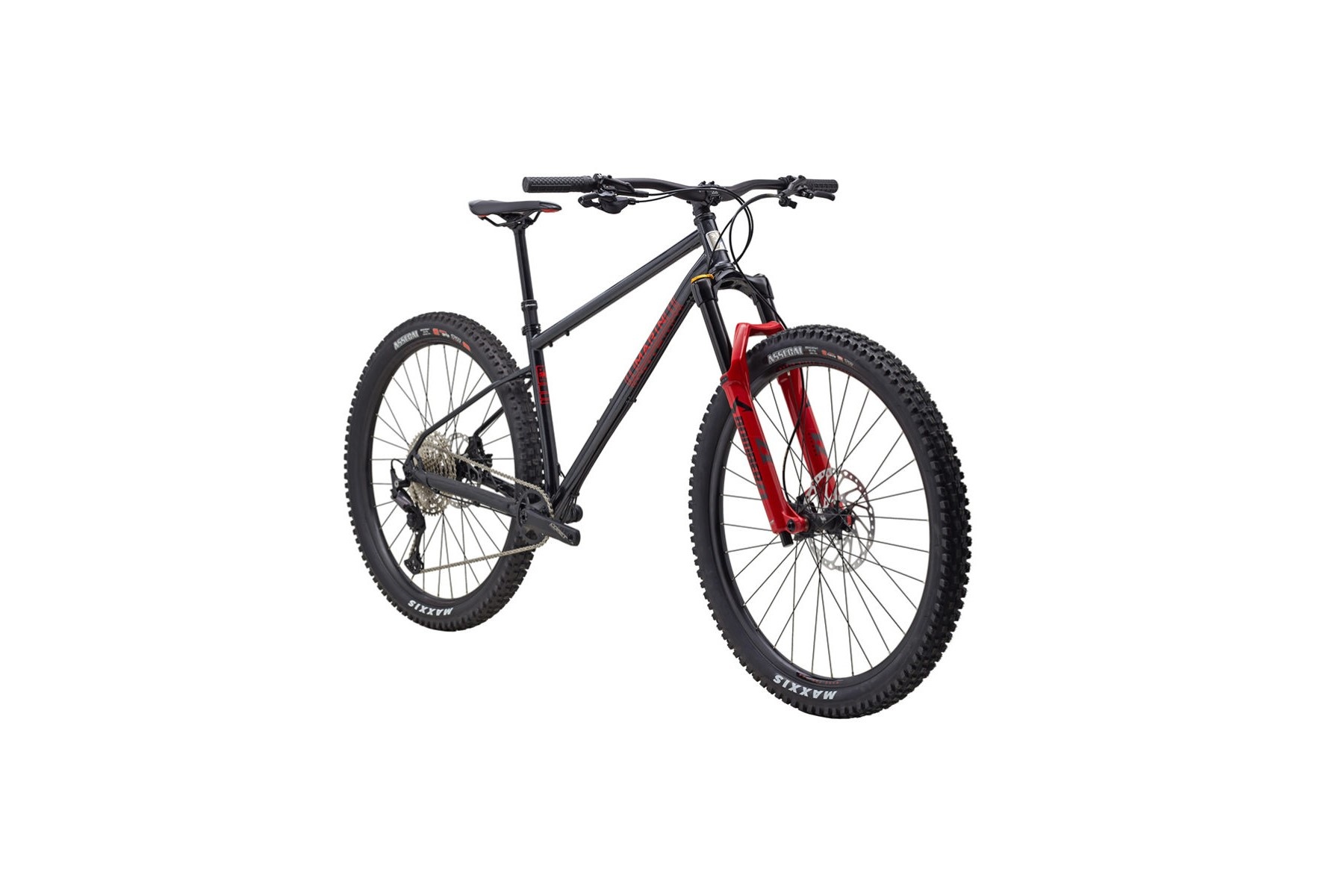

Marin EL ROY Gloss Black Sparkle

MODERN TRAIL GEOMETRY

The slack head tube angle paired with a steep seat tube angle create a ride that will fly uphill with perfect front wheel precision but then descend like it’s on rails. The balanced rider position thanks to the steep seat tube puts your weight between the wheels for impressive climbing and handling on flats, while the slack front end and short rear center help to pull you through the rough descents and corners with an intuitive feel.

GEOMETRY:



	REGULAR			GRANDE
A  STACK	645			645
B  REACH	480			510
C  HEADTUBE ANGLE	63°			63°
D  HEADTUBE LENGTH	120			120
E  SEATTUBE ANGLE	78°			78°
F  SEATTUBE LENGTH	420			430
G  TOPTUBE EFFECTIVE	617			647
H  BB HEIGHT	318			318
I  BB DROP	65			65
J  CHAINSTAY	435			435
K  WHEELBASE	1252			1282
L  STANDOVER HEIGHT	735			743
M  FORK OFFSET	44			44

All lengths in millimeters

Specs:

• FRAME: Series 3 Double Butted and Formed CrMo tubing, Integrated Drop-In Headset, External Rear Derailleur and Brake Housing, Internal Dropper Post Routing, 148x12mm Boost Rear Spacing, Post Mount Brake Mounts
• FRONT SUSPENSION: Marzocchi Z1, 140mm Travel, EVOL Air Spring, GRIP Damper w/ Sweep Adjust, Kabolt 110 Axle, 44mm Offset
• RIMS: Marin, Double Wall Alloy, 29mm Inner, Welded Joint, Disc Specific, 32H, Tubeless Compatible
• HUB, REAR: Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body
• HUB, FRONT: Shimano HF-MT410B, 110x15mm, Centerlock
• SPOKE, NIPPLES: 14g Black Stainless Steel
• TIRES: Maxxis Assegai 29x2.5", MAXX GRIP, Double Down, Tubeless Compatible
• DERAILLEUR, REAR: Shimano Deore, 12-Speed, SGS
• SHIFT LEVER: Shimano Deore, M6100, 12-Speed
• CRANKSET: FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
• BOTTOM BRACKET: Mego EXO 73mm BSA
• CHAIN: KMC X-12 Silver and Black
• CASSETTE: Shimano, Deore 12-Speed, 10-51T
• BRAKE, FRONT: Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor
• BRAKE, REAR: Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor
• BRAKE LEVERS: Shimano BL-M4100 Hydraulic Lever, I-Spec EV Compatible
• HANDLEBAR: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
• STEM: Marin 3D Forged Alloy, 35mm
• GRIPS: Marin Single Clamp Locking
• HEADSET: FSA Orbit 40 No.42 ACB
• SEATPOST: X Fusion Manic, Regular = 150mm Travel, Grande = 170mm Travel
• SADDLE: Marin Speed Concept
• EXTRAS: Bolt-On Thru-Axle
