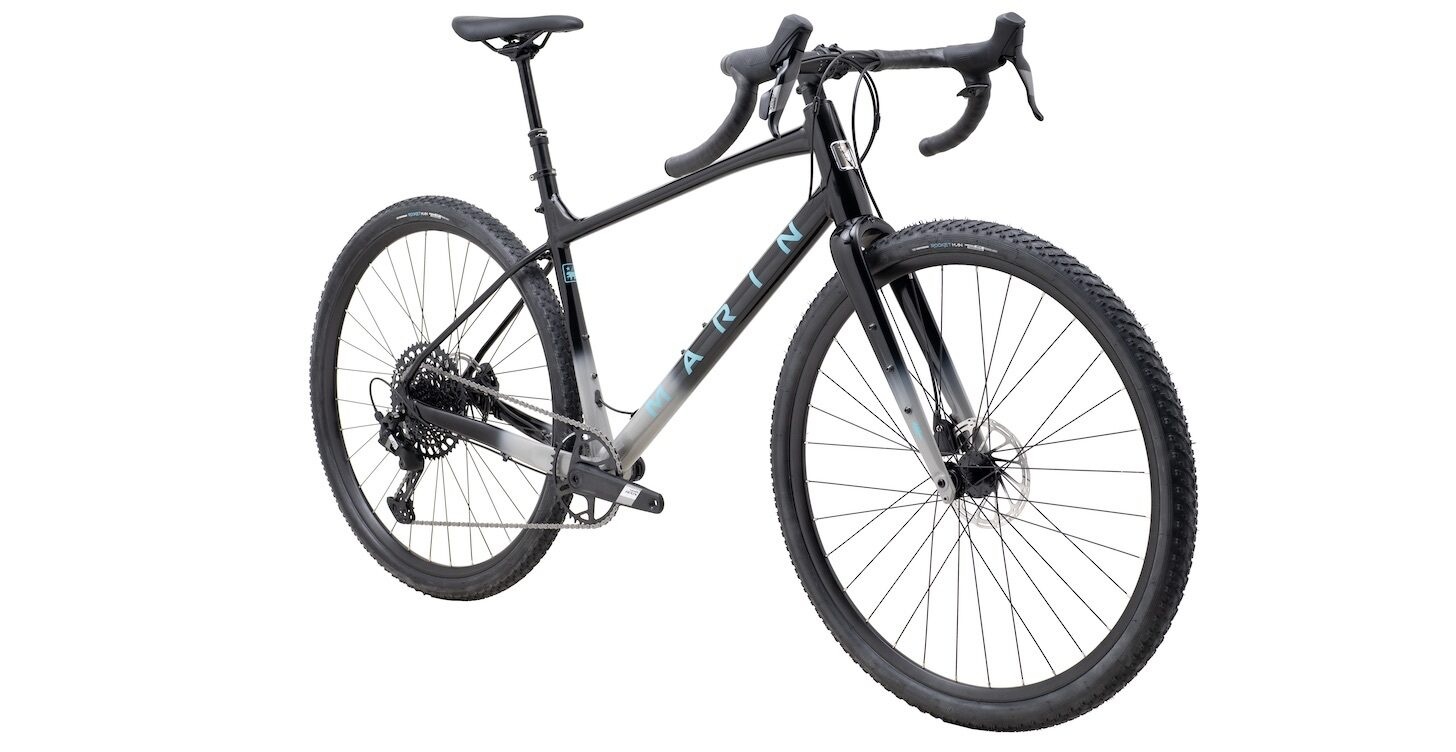

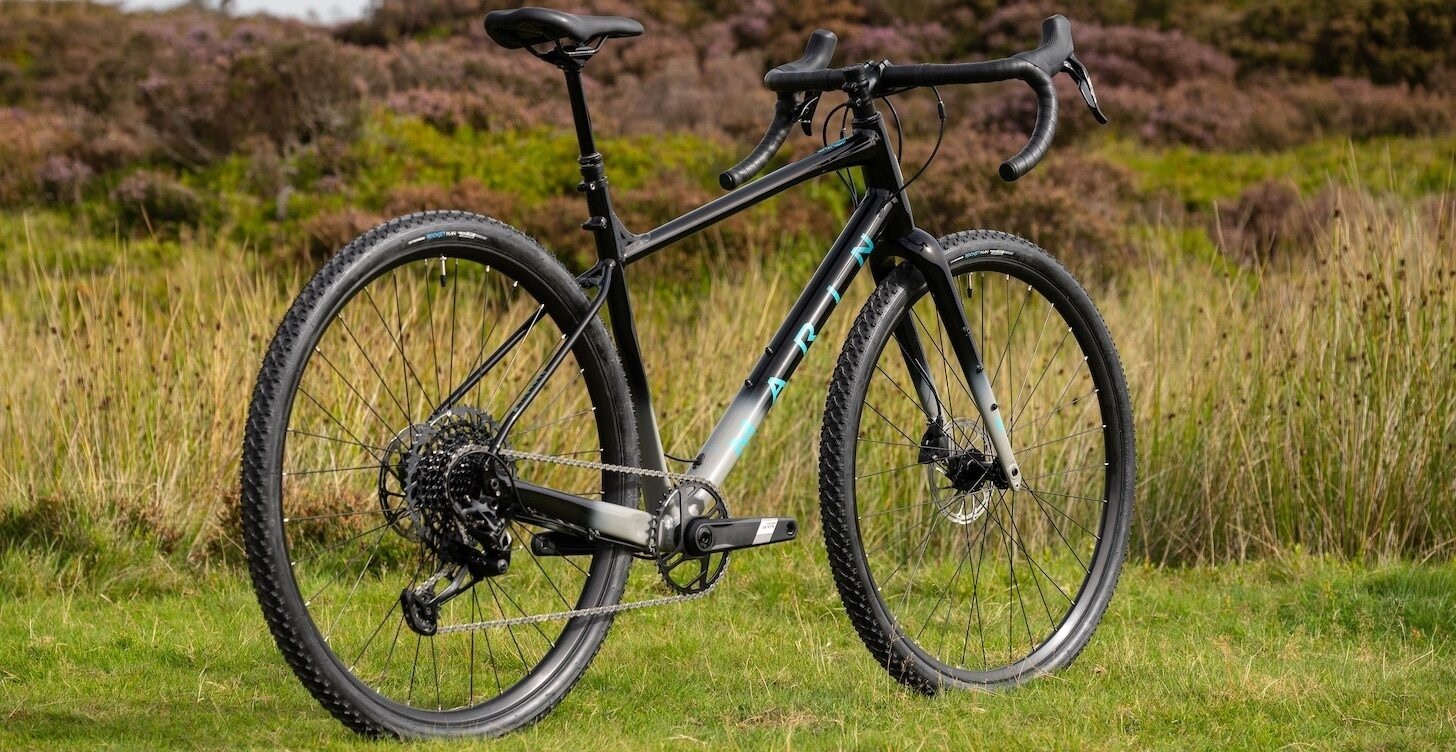

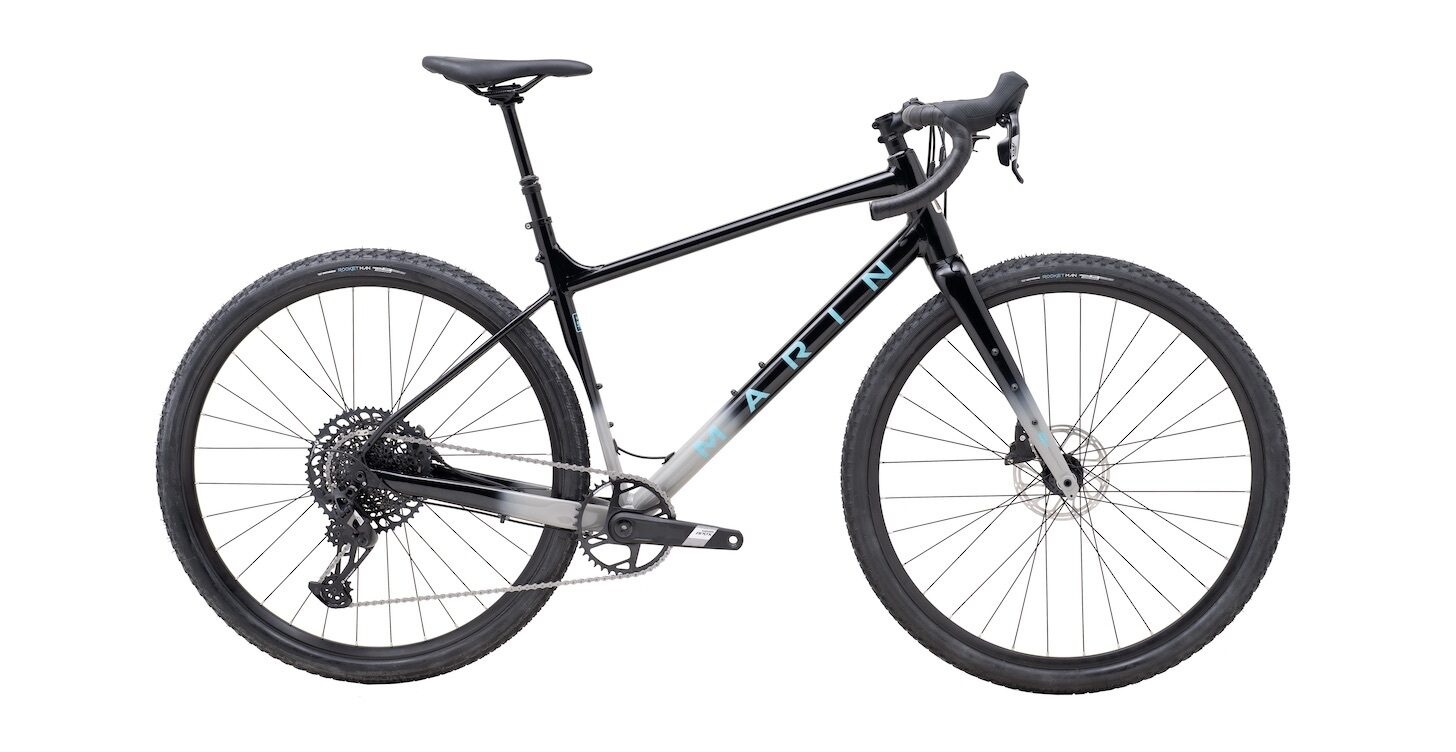

Marin Gestalt XR Sram

The Gestalt XR takes gravel to the next level. XR brings our MTB-inspired, Series 3 aluminum Gestalt X frame and adds a gravel-specific SRAM Apex 12-speed drivetrain, Apex hydraulic disc brakes, a TranzX dropper post, cushy and grippy 44mm wide Vee Tire Rubber and heaps of our own bespoke Marin components.

SERIES 3 ALUMINUM FRAME

The Gestalt X features a butted and formed Series 3 6061 aluminum frame with progressive Beyond Road geometry, internal routing, 142x12mm thru-axles, flat mount disc brakes, and rack and fender eyelets.

BEYOND ROAD GEOMETRY

The Gestalt X takes our Beyond Road Geometry to the next level of aggressive road and dirt exploration with a blend of endurance road handling and mountain bike sensibilities. Frames now follow mountain bike sizing norms (S, M, L, XL), and the longer/lower/slacker style found on dirt-oriented bikes, with 67.5° head tube angles, and short stem/wide bar combos.

TIRE CLEARANCE

The Gestalt X frame and fork now has clearance for up to up to 700Cx50 or 650Bx54 Road Plus.

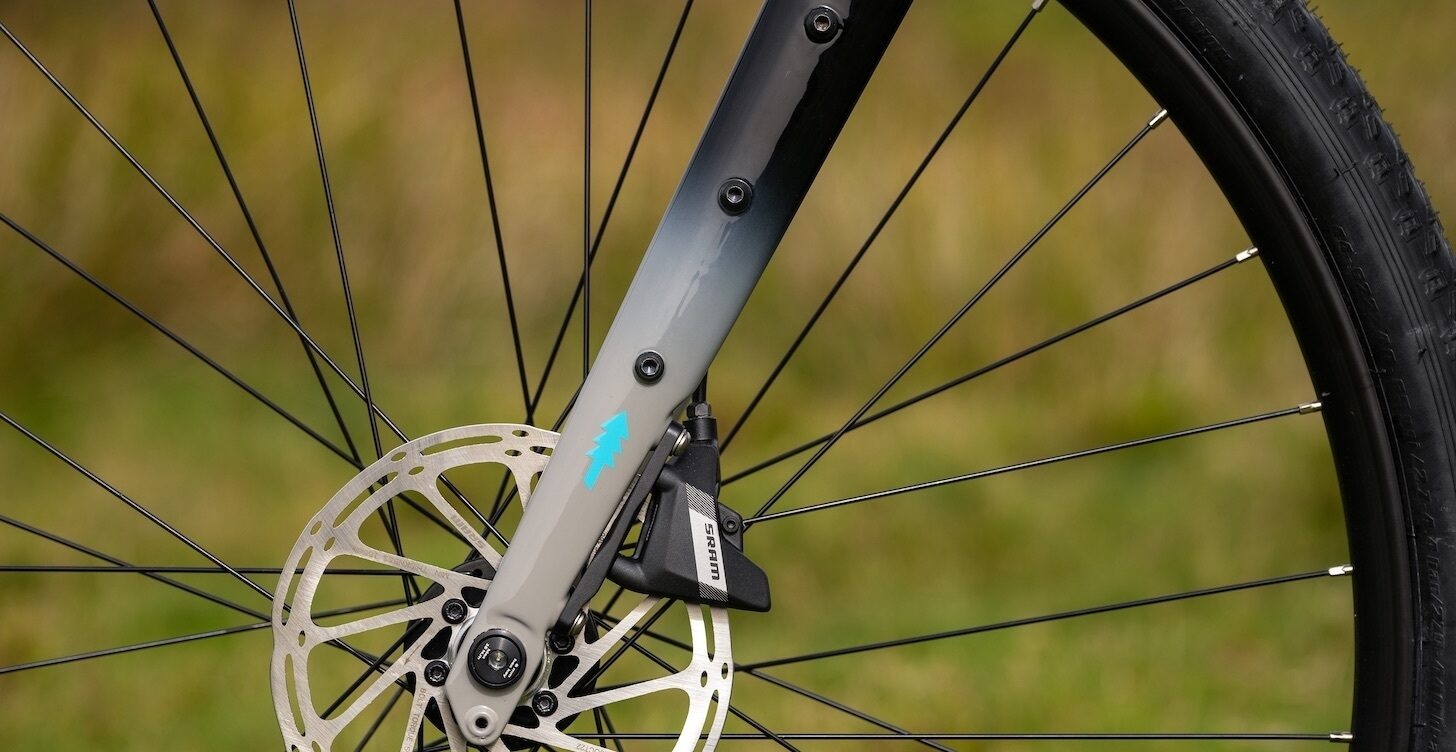

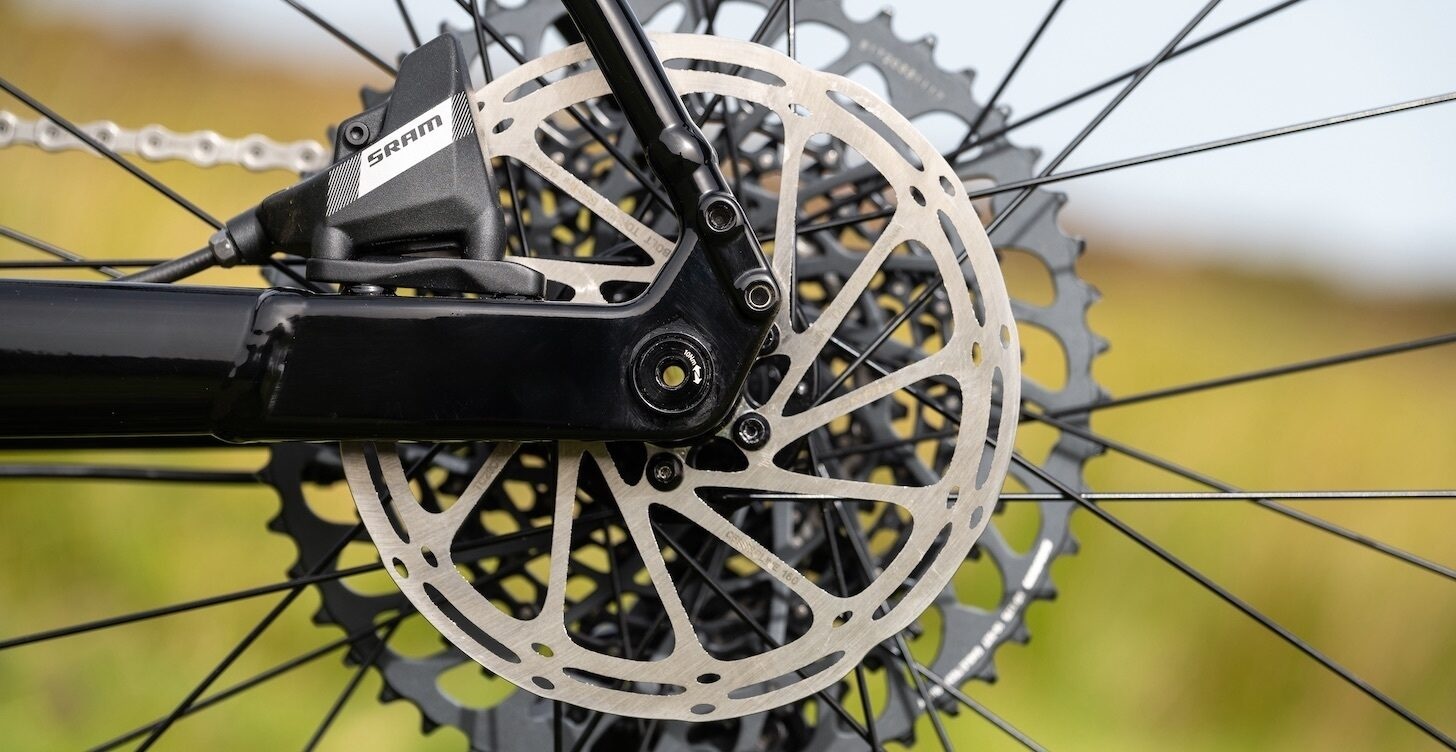

DISC BRAKES

The Gestalt X features the latest flat mount disc brake standard for smooth, controlled stopping in all conditions with minimal maintenance.

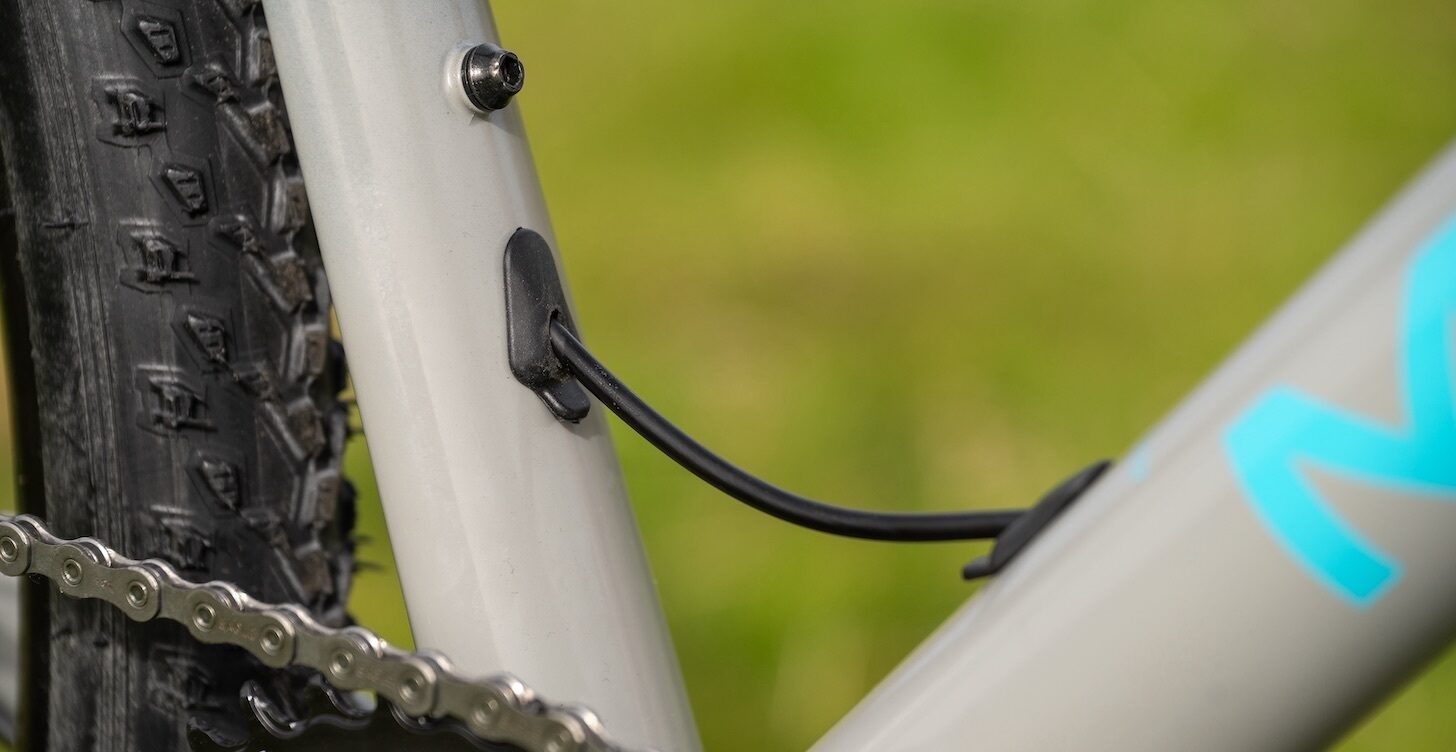

BRAZE-IN CABLE ROUTING

New braze-in cable/hose routing is seek and clean and rattle-free.

Specs:

Frame: Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Rim: Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible

Hub Rear: Forged Aluminum Alloy, 142x12mm, Disc, 32H

Hub Front: Forged Aluminum Alloy, 100x12mm, Disc, 32H

Spokes Nipples: 14g Black Stainless Steel

Tires: Vee Tire Co., Rocket Man, 700x44, Tubeless Compatible

Derailleur Rear: SRAM Apex 1 12-Speed

Derailleur Front: -

Shift Lever: SRAM Apex 1 1x12-Speed

Crankset: SRAM Apex 1, 40T

Bottom Bracket: SRAM DUB BSA

Chain: SRAM NX

Cassette: SRAM CS-XG-1275, 10-52T

Brakes Front: SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor

Brakes Rear: SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor

Brake Levers: SRAM Apex 1 Hydraulic Disc

Handlebar: Marin Butted Alloy, Compact 16º Flared Drop

Stem: Marin 3D Forged Alloy

Grips: Marin Shock Absorbing Perforated Tape

Headset: FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Seatpost: TranzX YSP38J, Size S-M 70mm, Size L-XL 110mm Travel, 27.2mm

Saddle: Marin Beyond Road Concept Elite

Pedals: -

Extras: Bolt-On Thru-Axles F and R

Specifications, pricing, and availability are subject to change without notice.
