SERIES 1 ALUMINUM FRAME

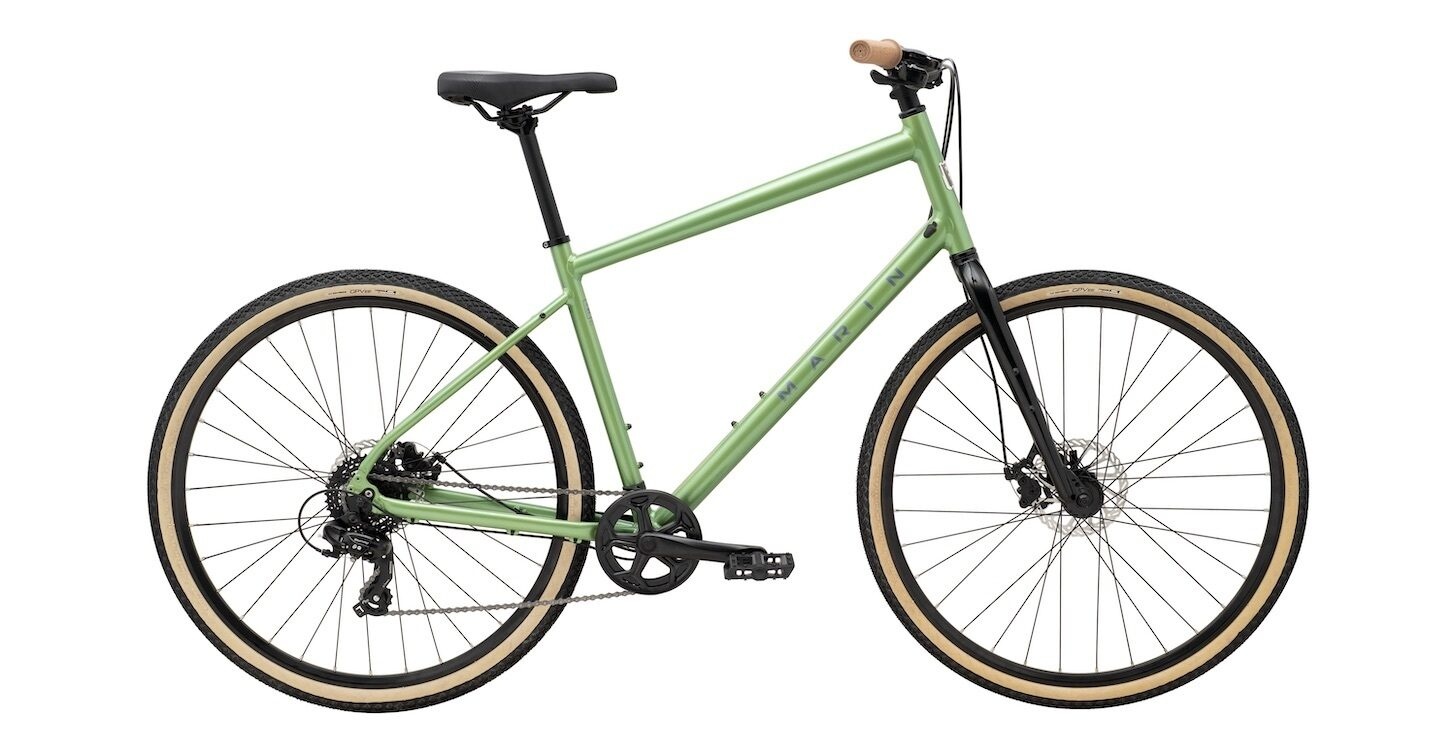

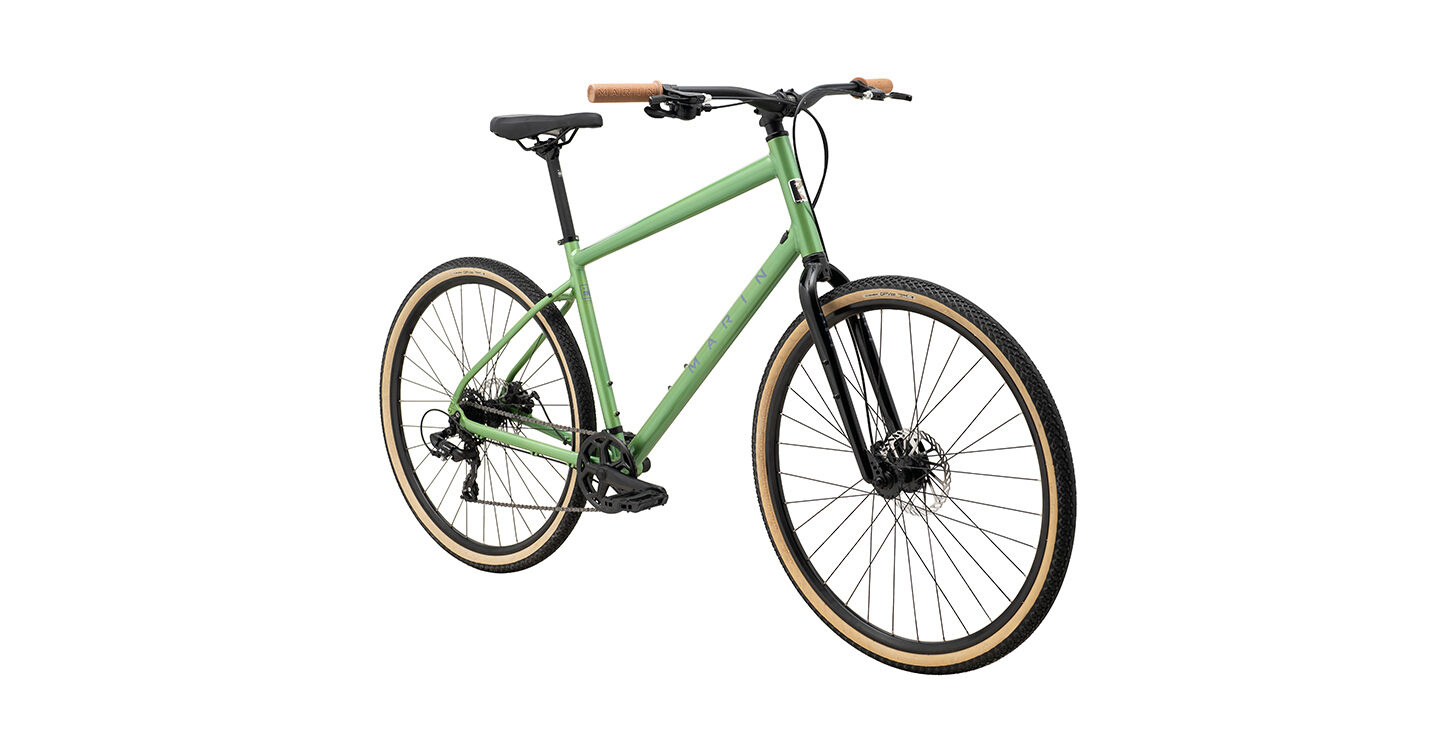

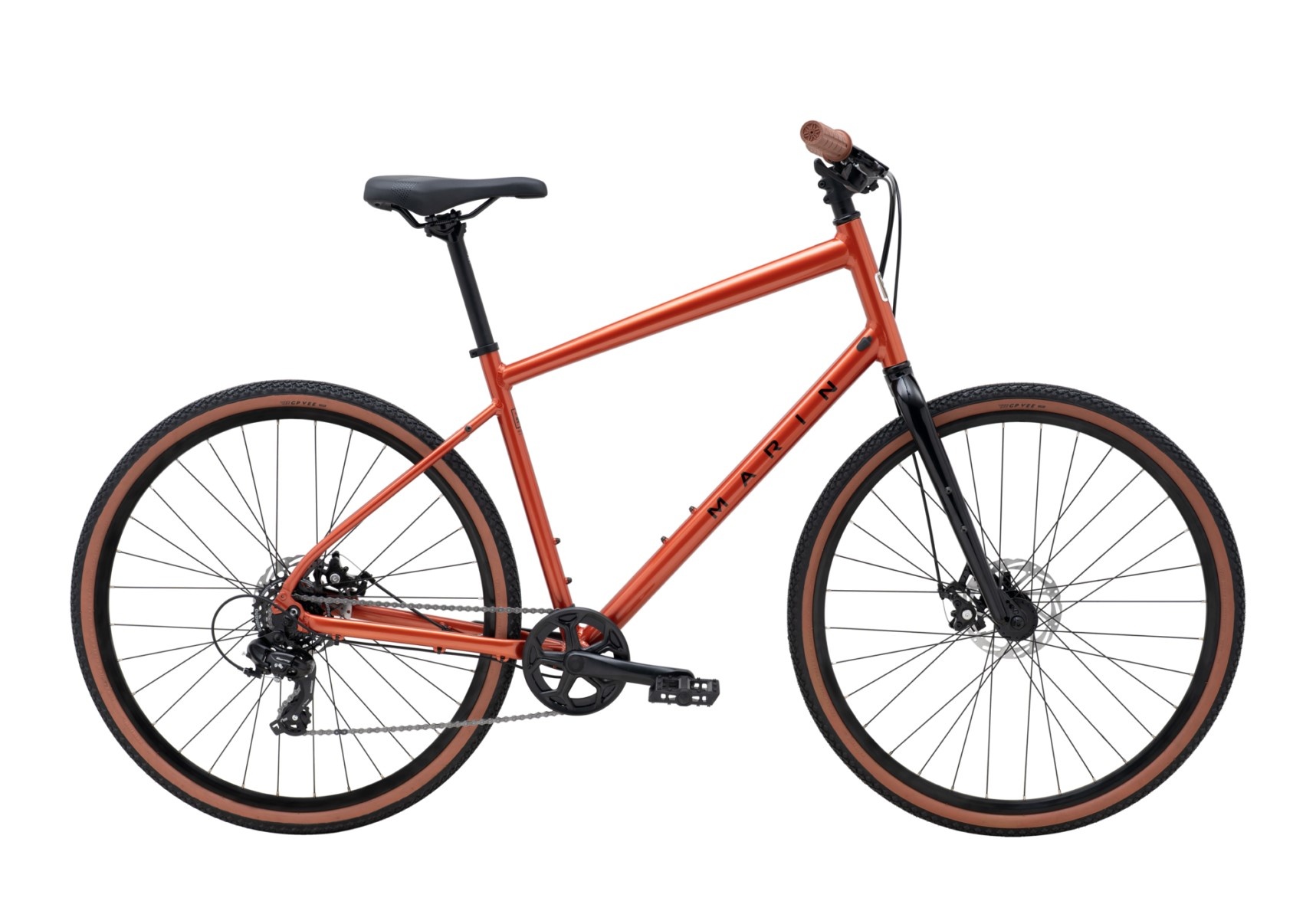

The Kentfield features a Series 1 6061 aluminum frame with disc brake mounts and rack and fender eyelets and fast rolling, multi-surface capable 700c wheels with either a standard horizontal top tube or a step-thru frame design.
CRMO BMX INSPIRED FORK
The stylish CrMo BMX style fork has straight blades, disc mounts, and BMX inspired dropouts.
HYBRID GEOMETRY
The Kentfield features upright seated hybrid geometry that mixes the upright position of a mountain bike with the efficiency of a pavement bike.
WIDE-RANGE GEARING
Wide-range, 1x gearing is simple to use and offers as large if not larger of a gear range than multi-chainring bikes of the past.
DISC BRAKES
Disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.
GEOMETRY:
|
|
S |
M |
L |
XL |
|
A STACK |
633.6 |
648.4 |
666.5 |
685.3 |
|
B REACH |
380 |
400 |
415 |
430 |
|
C HEADTUBE ANGLE |
70° |
70° |
70° |
70° |
|
D HEADTUBE LENGTH |
190 |
205 |
225 |
245 |
|
E SEATTUBE ANGLE |
73.5° |
73.5° |
73.5° |
73.5° |
|
F SEATTUBE LENGTH |
422 |
462 |
495 |
528 |
|
G TOPTUBE EFFECTIVE |
567.7 |
591.9 |
612.4 |
633 |
|
H BB HEIGHT |
294.5 |
294.5 |
294.5 |
294.5 |
|
I BB DROP |
70 |
70 |
70 |
70 |
|
J CHAINSTAY |
450 |
450 |
450 |
450 |
|
K WHEELBASE |
1082.9 |
1108 |
1130 |
1151.7 |
|
L STANDOVER HEIGHT |
718.86 |
754.41 |
784.94 |
815.14 |
|
M FORK OFFSET |
50 |
50 |
50 |
50 |
|
SEATPOST DIAMETER |
27.2 |
27.2 |
27.2 |
27.2 |
|
HANDLEBAR WIDTH |
680 |
740 |
740 |
740 |
|
STEM LENGTH |
45 |
45 |
45 |
45 |
|
CRANK LENGTH |
170 |
170 |
175 |
175 |
All lengths in millimeters
Specs:
FRAME: Series 1 City + Sport, 6061 Aluminum, 700C Wheels, Step Through Design, Fender and Rack Mounts
FORK: Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
RIMS: Marin Aluminum Double Wall, Disc Specific
HUB, REAR: Forged Aluminum Alloy, 32H
HUB, FRONT: Forged Aluminum Alloy, 32H
SPOKE, NIPPLES: 14g Stainless Steel
TIRES: Vee Tire, GPVee, 700x40, Wire Bead, Flat Protection, Mixed Terrain Ready
DERAILLEUR, REAR: Shimano Tourney 7-Speed
SHIFT LEVER: Shimano Altus 7-Speed RapidFire
CRANKSET: Forged Alloy Crank, Steel 38T Chainring, Ring Guard
BOTTOM BRACKET: Sealed Cartridge Bearings, Square Taper
CHAIN: KMC Z-8.3
CASSETTE: SunRace 7-Speed, 11-34T
BRAKE, FRONT: Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
BRAKE, REAR: Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
BRAKE LEVERS: Aluminum Lever
HANDLEBAR: Marin Alloy, 30mm Rise, 12˚ Backsweep
STEM: Marin Aluminum, 31.8mm Clamp
GRIPS: Marin Adventure
HEADSET: FSA 888 Threadless
SEATPOST: Marin Alloy, 27.2mm
SADDLE: Marin Adventure Plush
PEDALS: Commute Platform
Specifications, pricing, and availability are subject to change without notice.
