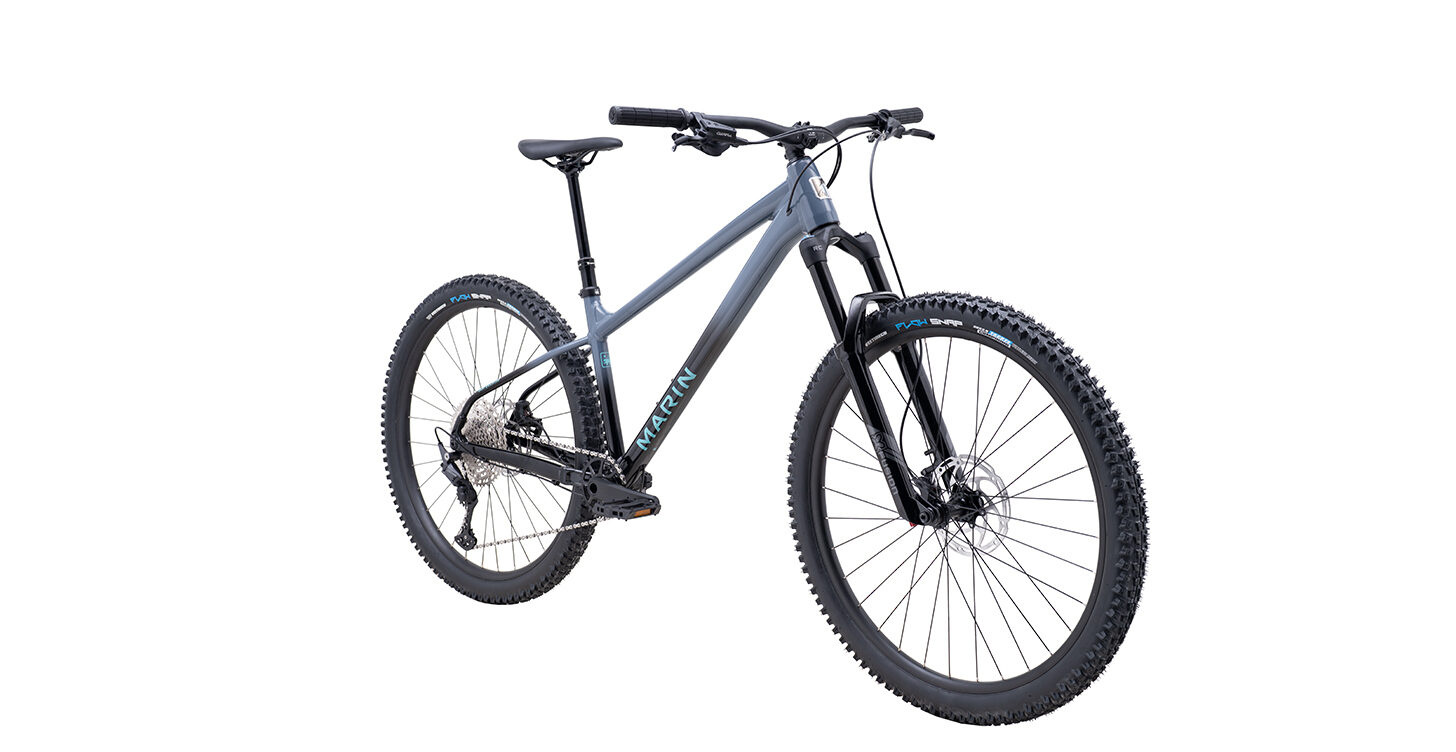

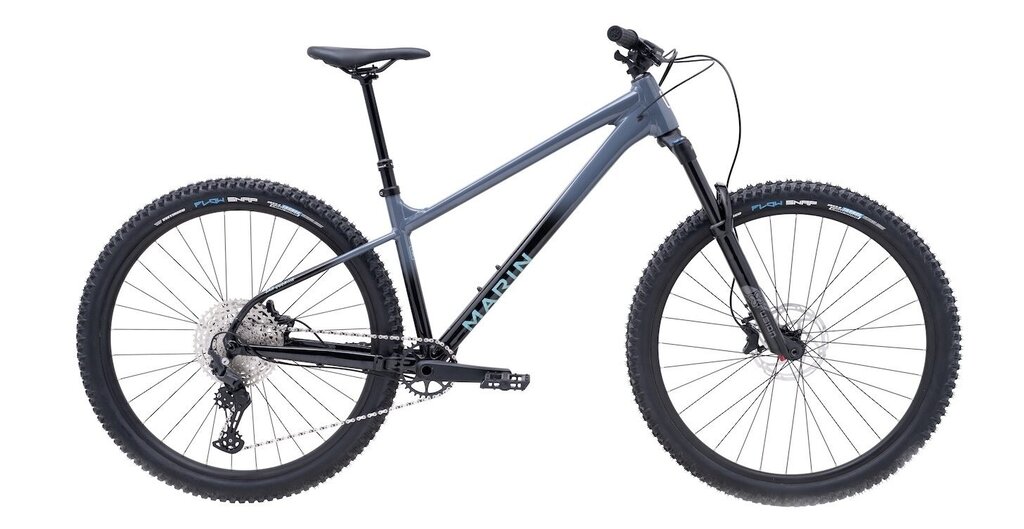

Marin San Quentin 2 29

Dirt jump DNA with all the speed and roll-over of 29" wheels. The Marin San Quentin 2 29 is our mid-pack model that blends bang-for-your-buck value with kick-ass components. We’ve packed in 29" wheels, a TranzX dropper post, X-Fusion suspension fork, Tektro brakes, Vee Tire rubber and plenty of awesome Marin kit to create a bike you’ll love to rip, but that won’t shred your budget.

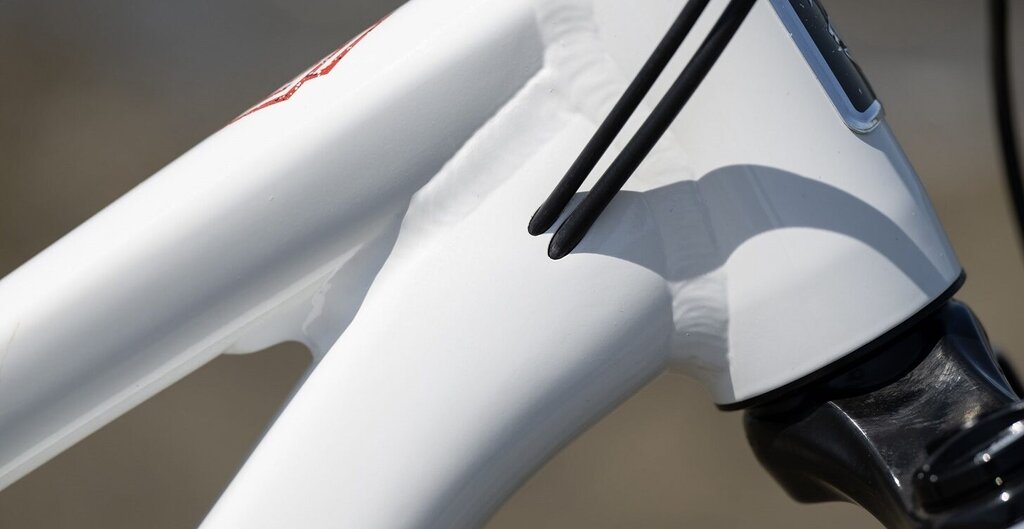

SERIES 3 ALUMINUM FRAME

The San Quentin 2 and 3 feature Series 3 aluminum frames, with more advanced tube forming, more complex dropouts, post mount disc tabs, full internal cable routing, and a boost 148mm thru-axle.

DIRT JUMP INSPIRED FRAME STYLE

Taking cues from the Alcatraz, the San Quentin line up provides all the benefits of the DJ style with massive stand over, slick frame tubes, and a sexy paint job.

MODERN TRAIL GEOMETRY

The slack head tube angle paired with a steep seat tube angle create a ride that will fly uphill with perfect front wheel precision but then descend like it’s on rails. The balanced rider position thanks to the steep seat tube puts your weight between the wheels for impressive climbing and handling on flats, while the slack front end and short rear center help to pull you through the rough descents and corners with an intuitive feel.

ISCG TABS

San Quentin 2 and 3 models feature ISCG 05 tabs for easy chain retention device installation for rowdier riders.

GEOMETRY:

All lengths in millimeters

Specs:

FRAME: All New Series 3 6061 Aluminum, Double Butted, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB

FRONT SUSPENSION: X-Fusion Slide Boost RC, 29", 140mm Travel, Compression and Rebound Adjustment, 110x15mm Thru Axle, 44mm Offset

RIM: Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible

HUB REAR: Shimano FH-TC500, 148x12, MicroSpline Freehub Body, Centerlock Disc, 32H

HUB FRONT: Shimano HB-TC500, 110x15mm

SPOKES NIPPLES: 14g Black Stainless Steel

TIRES: Vee Tire Co, Flow Snap, 29x2.6", MPC Compound, Wire Bead

DERAILLEUR REAR: Shimano Deore, 11-Speed, SGS

DERAILLEUR FRONT: -

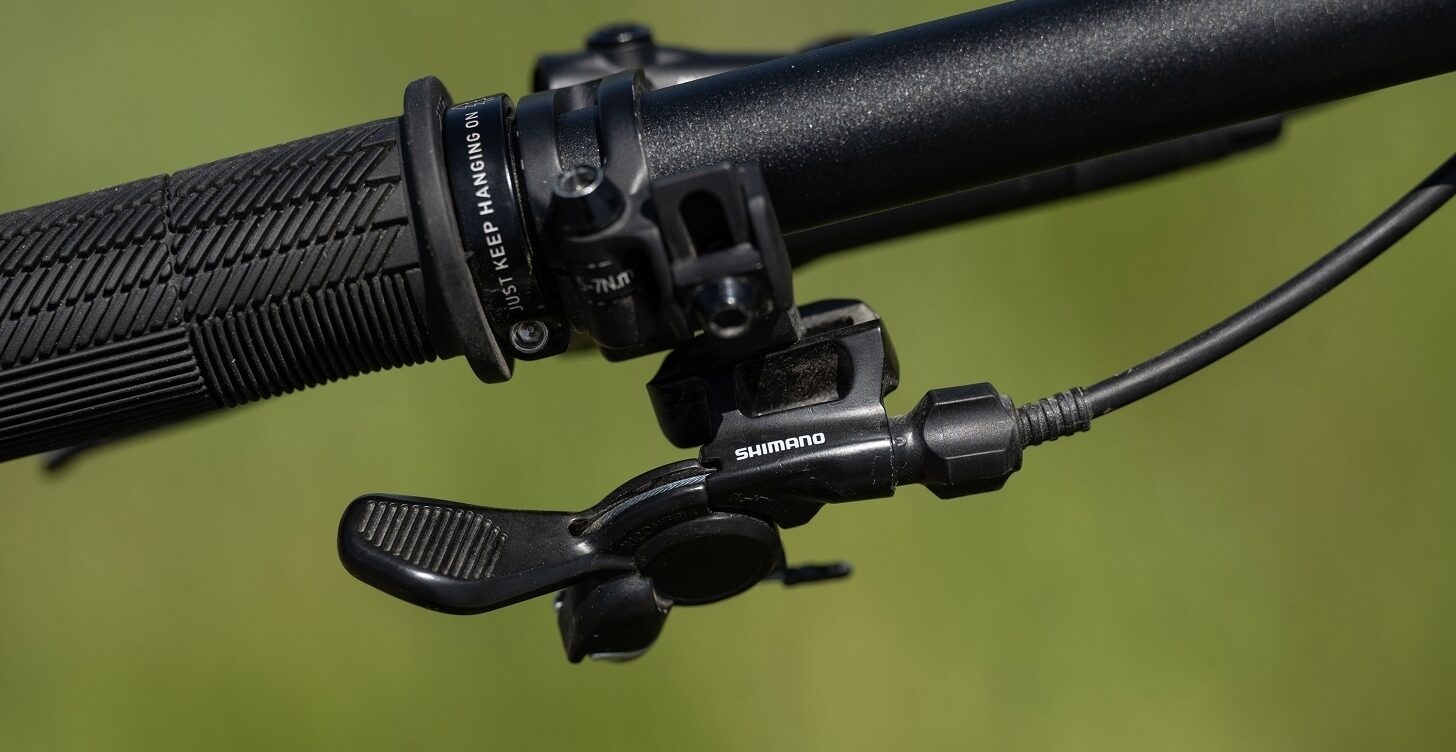

SHIFT LEVER: Shimano Deore, 11-Speed, SL-5100R

CRANKSET: Marin Forged Alloy w/ Hollow Spindle and Integrated Steel 32t Narrow Wide Chanring, Boost Spacing

BOTTOM BRACKET: External Sealed Cartridge Bearing

CHAIN: Shimano CN-LG500

CASSETTE: Shimano CS-5100-11, 11-51T

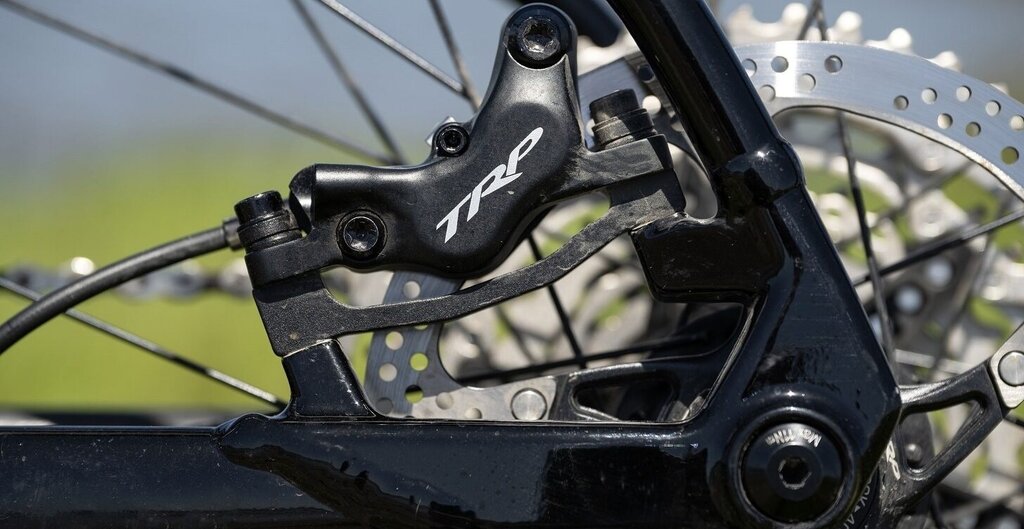

BRAKES FRONT: Tektro M535 4-Piston Hydraulic, 180mm Rotor

BRAKES REAR: Tektro M535 4-Piston Hydraulic, 180mm Rotor

BRAKE LEVERS: Tektro M535

HANDLEBAR: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

STEM: Marin 3D Forged Alloy, 35mm

GRIPS: Marin Grizzly Lock On

HEADSET: FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

SEATPOST: TranzX, YSP18, 1x Remote, All Sizes 170mm Travel, 30.9mm

SADDLE: Marin Speed Concept

PEDALS: Marin Oso OE Flat

EXTRAS: -

Specifications, pricing, and availability are subject to change without notice.
